Lippert Pontoon Ladder

SKU: 2025041871
List Price: $1,149.95
Price: $999.99
You Save: $149.96 (13%)
Product Details

Lippert Marine Ladder – Engineered for Safety, Strength & Long-Term Performance

Upgrade your pontoon or boat with the Lippert Marine Ladder, the ultimate boarding solution engineered for safety, durability, and comfort. Proudly designed, welded, and assembled in Indiana, this heavy-duty boat boarding ladder meets ABYC standards and provides long-lasting reliability for every adventure on the water.

Built from corrosion-resistant stainless steel hardware and marine-grade aluminum, the Lippert Ladder delivers unmatched strength — rated for up to 400 lbs. Its wide, slip-resistant steps make boarding easier and safer for passengers of all ages, while the single-motion retraction system ensures smooth, effortless operation when stowing or deploying.

Whether you’re upgrading your pontoon ladder, replacing a worn-out boarding system, or adding a swim ladder to your deck, the Lippert design guarantees superior performance and long-term value.


⚙️ Key Features & Benefits

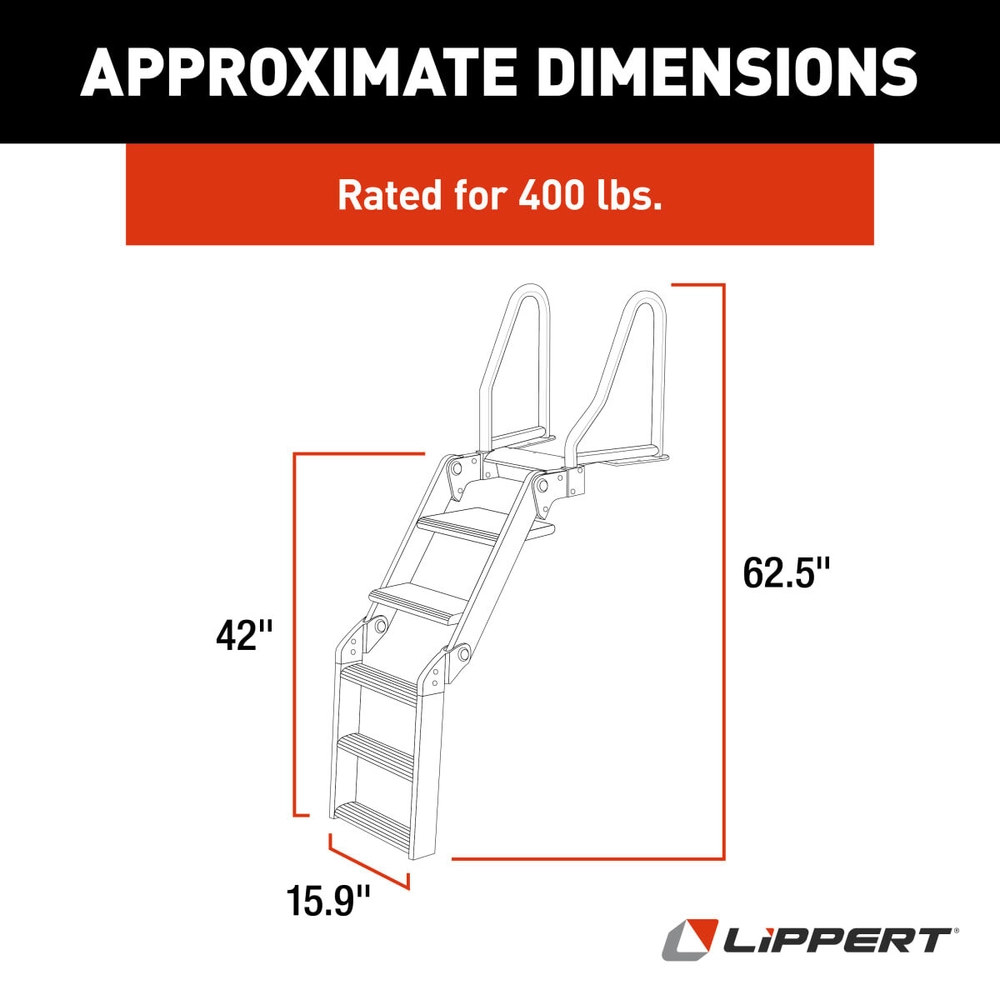

  • Certified 400-lb Weight Rating – Tested and engineered for strength, safety, and long-term reliability.

  • ABYC Certified Design – Meets marine industry standards for performance and construction.

  • Corrosion-Resistant Components – Stainless steel and black powder-coated aluminum resist rust, saltwater, and sun damage.

  • Slip-Resistant, Wide-Set Treads – Stable footing ensures safer boarding from dock or water.

  • Quick Installation – Fits a 15" L x 13.5" H mounting footprint for secure, easy setup on most pontoons and boats.

  • Single-Motion Retraction – Effortless to fold and deploy for convenient deck operation.

  • Proudly Made in the USA – Designed, welded, and assembled in Indiana for quality you can trust.


🌊 Built for Every Boater

From family outings to serious fishing trips, the Lippert Pontoon Ladder makes boarding safer and smoother. Its sturdy construction, marine-grade materials, and thoughtful design make it ideal for pontoon boats, deck boats, and swim platforms.


Lippert Marine Ladder with stainless steel railings and black aluminum steps for pontoon boats
Lippert Pontoon Ladder
Lippert Marine Ladder with stainless steel railings and black aluminum steps for pontoon boats
Lippert Pontoon Ladder
pontoon boat ladder rated 400 lb with stainless steel handles
Lippert Pontoon Ladder
(Click to see larger image and other views)
4-Bow Pontoon Bimini Top & Frame Installation Instructions:

  1. For an 8' or 10' top you want to measure from the front of your helm back to 8' or 10'. From there find the middle of your tape measure and mark it-*This is your middle H-Bracket mounting point.* Mount your H-bracket with 1-3/4 Phillips Pan Bolt*
  2. Find a common spot to measure on both sides of your boat and mount the opposite side H-bracket. *Make sure it matches the H-bracket on the other side*
  3. Now you want to locate your left or right sided bow assembly's, there should be four pieces. Here you want to attach the two pieces to each other making one large piece for each side. *The adjustable strut goes in the front and the solid strut goes in the back.* Connect at the H- Bracket point with 1-3/4 Phillips Pan Bolt.  bimini top installation
  4. Attach the bow assembly's to your middle H-Bracket and secure with pull pin.  bimini top install
  5. Line up the rear struts perpendicular to the top rail, creating a 90 degree angle. Mark the position for the holes in the H -bracket on the top rail and drill completely through the rail.  pontoon canopy installation
  6. Repeat steps 1-5 on the opposite side.  pontoon boat bimini installation
  7. Once both bow assembly's are secure you will start to attach your center bows. *The connector pieces come pre-attached to the center bows* Make sure the bow with the hole cutout goes in the back for the stern light. *You may want to place all bows on the corresponding arms before securing with screws on the bottom side*  boat bimini installation
  8. Now find your bimini top fabric and lay it out to find the back side. *There will be a hole cutout for the stern light indicating it is the back*
  9. Find your last center bow and zipper that into the last sleeve of the canvas.  boat bimini install
  10. Repeat step 9 for bows 2-4.  pontoon boat bimini installation
  11. Open your top and let your front strut hang loose. Directly below mount your front H-Bracket with the 1-3/4 Phillips Pan Bolt like you did in step 5 and secure with the pull pin.  pontoon boat bimini installation
  12. Step back and straighten out the top, ensuring the middle seam is centered on the boat. Finish it off by securing the four snaps, one on each corner.  boat bimini top installation instructions
  13. Congratulations you just installed your new pontoon boat bimini top!
