Heavy-Duty Pontoon Bimini Top Kit – 8' x 10", Aluminum Frame

Our Products: Pontoon Bimini Tops and Parts > Complete Polyester Bimini Kits

SKU: 810APBK

List Price: $549.99

Price: $449.99

You Save: $100.00 (18%)

8x10 Polyester Fabric Color:
Would you like to add a stern light?:
Related Items:

Add to Cart

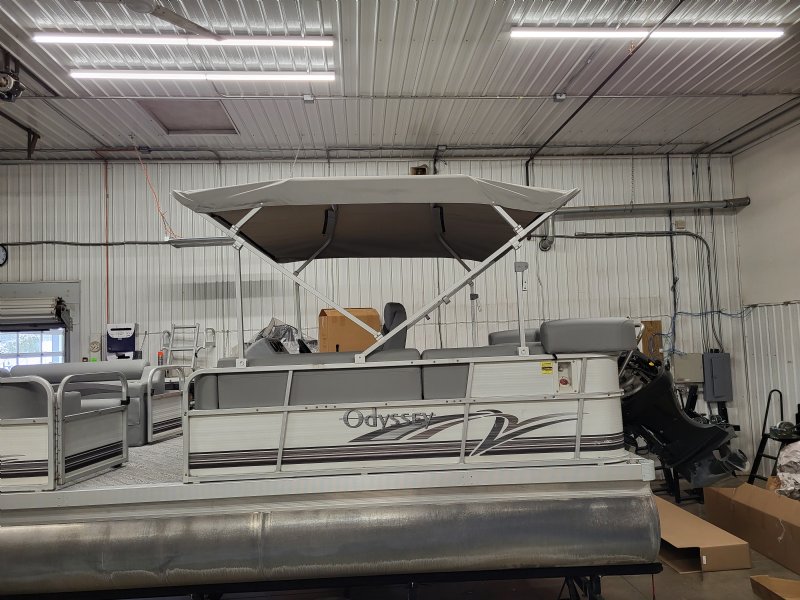

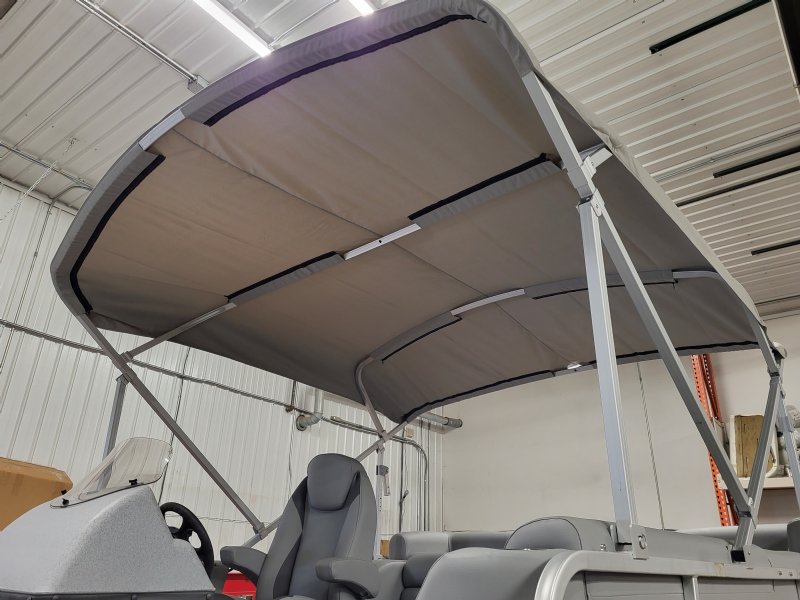

Heavy-Duty Pontoon Bimini Top Kit – 8' x 10", Aluminum Frame

Heavy-Duty Pontoon Bimini Top Kit – 8' x 10", Aluminum Frame

(Click to see larger image and other views)

Product Details

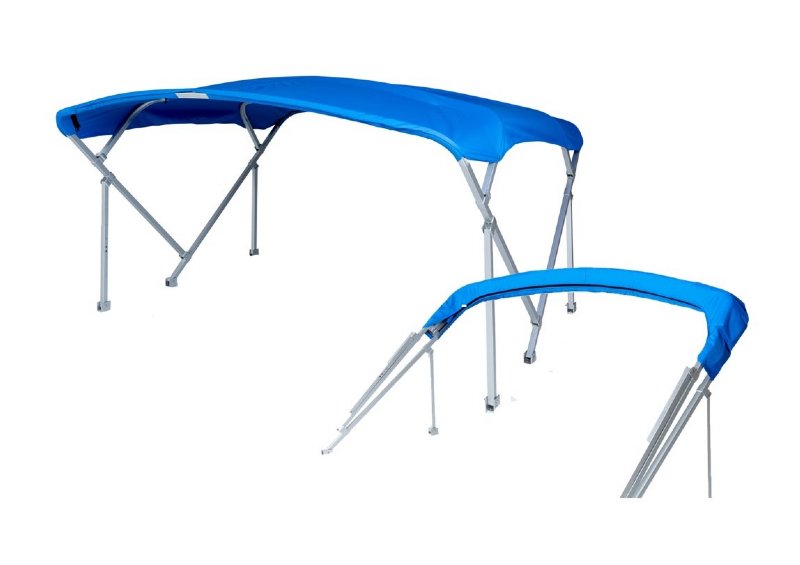

This Complete Bimini Top Kit Includes:

1-1/4" x 8' x 10' Anodized Aluminum Pontoon Bimini Frame
8' x 10' 100% Solution Dyed Fabric Pontoon Top
Matching Storage Boot
Heavy Duty Aluminum Mounting Hardware - No Plastic Mounting Hardware
Front Adjustable Mounting Struts

Bimini Top Details:

Top Size: 8' W x 10' L Pontoon Boat Bimini Top
Made of Quality Heavy Duty 100% Solution Dyed Marine Fabric
Color Matching Storage Boot has cut out for top mounted stern light
Our Zippered Pockets easily zip to the 4 bow bimini frame
Water Repellant and Breathable
One (1) Year Warranty

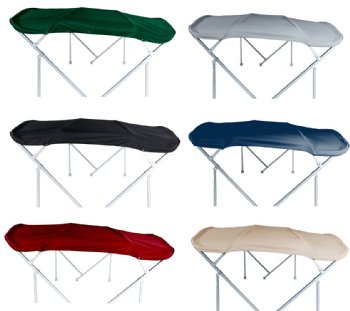

7 Colors Available

Frame Details:

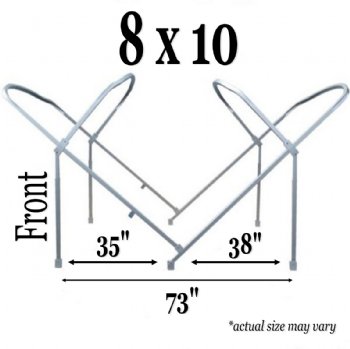

Frame Size: 8' W x 10' L - 4 Bow Bimini Frame
Frame Fits: 92" - 96" wide applications
Frame Tubing: 1-1/4" Square Tube Frame
Made of quality heavy duty Anodized Aluminum
Adjustable Mounting Struts
One (1) Year Warranty

If you're looking for a Replacement Pontoon Bimini Top and Frame you have come to the right place! Our Complete Pontoon Bimini Top Packages are made of 100% Solution Dyed Fabric and Anodized Aluminum. With 7 great colors to choose from this new frame, top and matching boot will make your pontoon look like new once again.

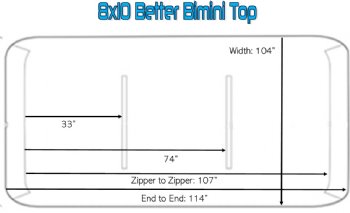

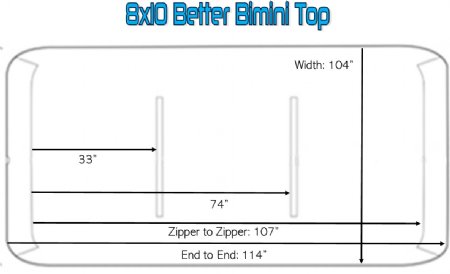

Our 8' x 10' pontoon bimini top zips to the 1-1/4" square tube 4 bow frame measuring 92" to 96" wide. When you purchase our pontoon bimini frames they will fit any pontoon railing that is between 88" to 96" wide. The standing height of the center of this pontoon top sits approx 55" off your pontoon fence (pontoon boat fence height can vary). Since our pontoon frames arch in the front and the back, the standing height here is 53" off the pontoon boat fence. Our expanded pontoon top coverage is 9.66 feet or 116". We still call this a 10' top because you have to take in consideration the fabric arches with the bows on the frame.

Please give us a call at 574-204-2345 to request a free sample to ensure color selection. Pictures may be inaccurate/altered due to computer/phone screens

Product Reviews

Write your own review

Rate this product:

Heavy-Duty Pontoon Bimini Top Kit – 8' x 10", Aluminum Frame

(Click to see larger image and other views)

4-Bow Pontoon Bimini Top & Frame Installation Instructions:

For an 8' or 10' top you want to measure from the front of your helm back to 8' or 10'. From there find the middle of your tape measure and mark it-*This is your middle H-Bracket mounting point.* Mount your H-bracket with 1-3/4 Phillips Pan Bolt*
Find a common spot to measure on both sides of your boat and mount the opposite side H-bracket. *Make sure it matches the H-bracket on the other side*

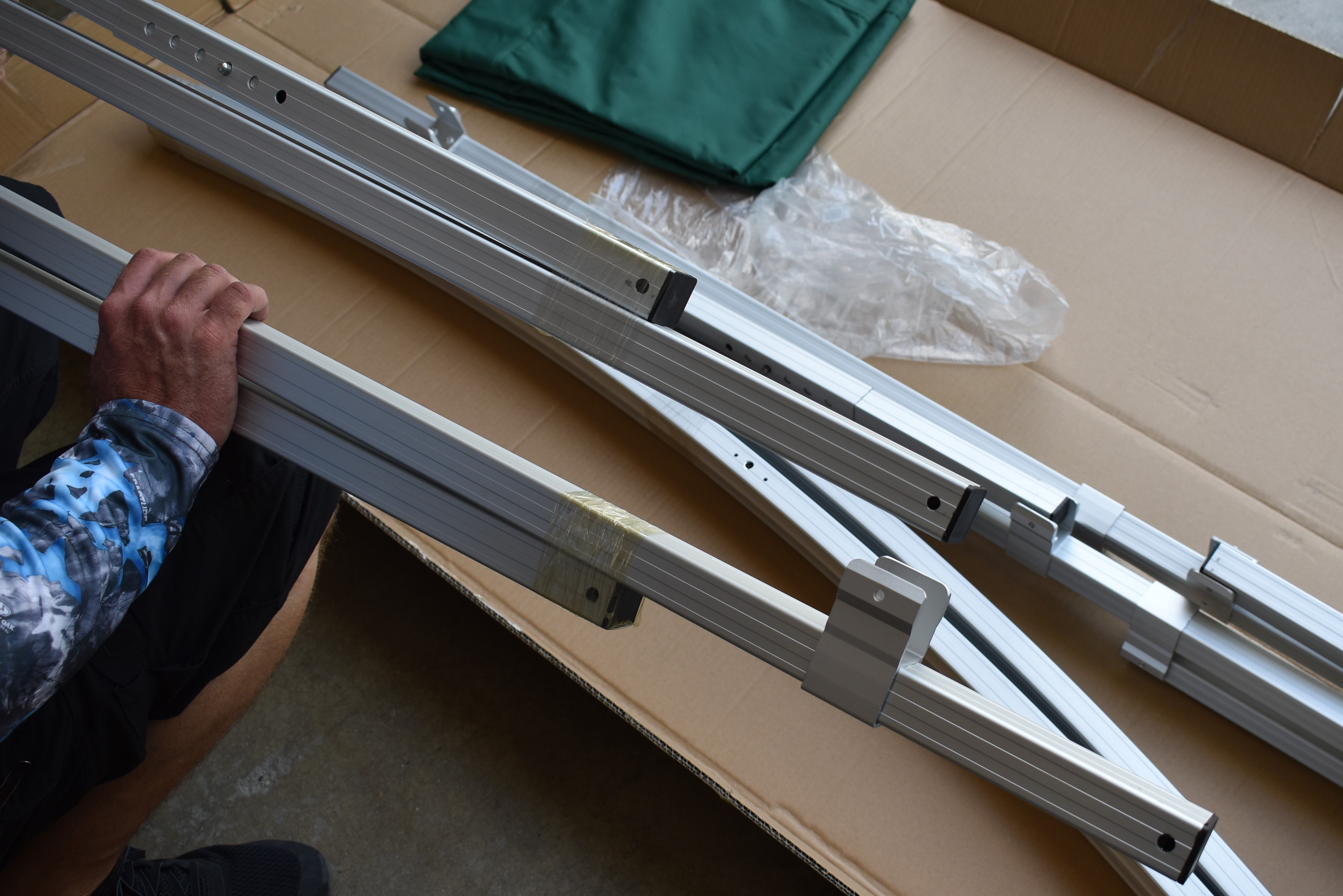

Now you want to locate your left or right sided bow assembly's, there should be four pieces. Here you want to attach the two pieces to each other making one large piece for each side. *The adjustable strut goes in the front and the solid strut goes in the back.* Connect at the H- Bracket point with 1-3/4 Phillips Pan Bolt.
Attach the bow assembly's to your middle H-Bracket and secure with pull pin.
Line up the rear struts perpendicular to the top rail, creating a 90 degree angle. Mark the position for the holes in the H -bracket on the top rail and drill completely through the rail.
Repeat steps 1-5 on the opposite side.
Once both bow assembly's are secure you will start to attach your center bows. *The connector pieces come pre-attached to the center bows* Make sure the bow with the hole cutout goes in the back for the stern light. *You may want to place all bows on the corresponding arms before securing with screws on the bottom side*
Now find your bimini top fabric and lay it out to find the back side. *There will be a hole cutout for the stern light indicating it is the back*
Find your last center bow and zipper that into the last sleeve of the canvas.
Repeat step 9 for bows 2-4.
Open your top and let your front strut hang loose. Directly below mount your front H-Bracket with the 1-3/4 Phillips Pan Bolt like you did in step 5 and secure with the pull pin.

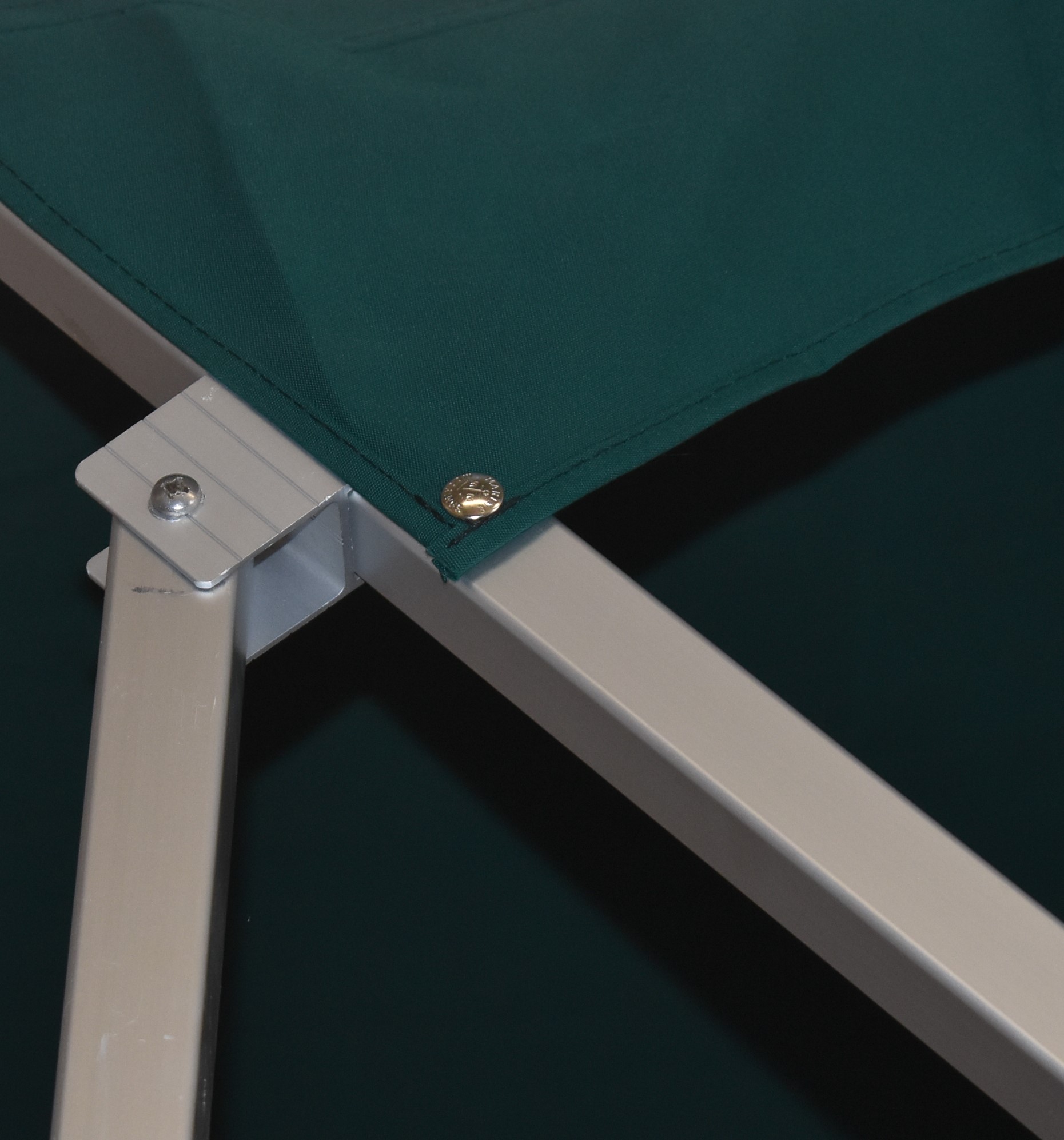

Step back and straighten out the top, ensuring the middle seam is centered on the boat. Finish it off by securing the four snaps, one on each corner.
Congratulations you just installed your new pontoon boat bimini top!
